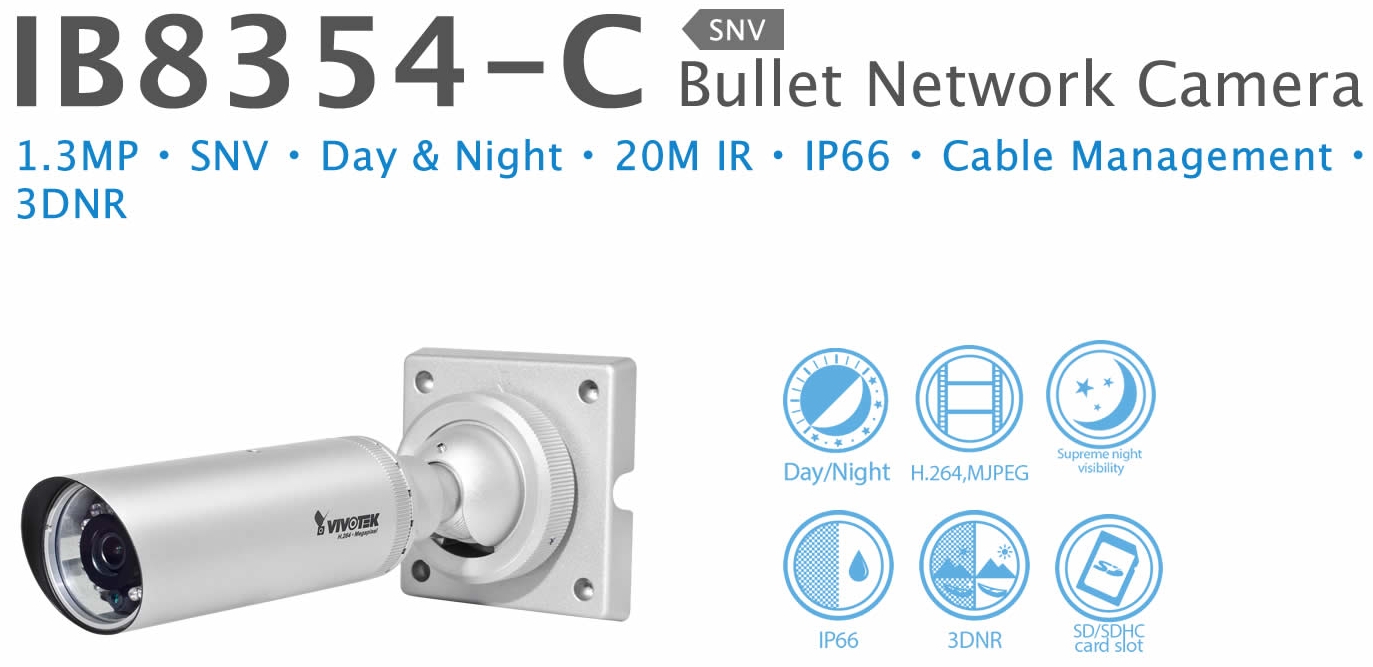

VIVOTEK IB8354-C, equipped with a 1.3MP sensor enabling viewing resolution of 1280x1024 at a smooth 30 fps, is a best-in-class, bullet-style network camera designed for diverse outdoor applications.
In order to adapt to constantly changing outdoor lighting conditions, the IB8354-C features a removable IR-cut filter as well as improved IR illuminators effective up to 20M for superior image quality around the clock. The supreme sensitivity of the sensor enables the camera to capture true colors in dark areas. For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing to withstand dust and rain. The IB8354-C further strengthens the robustness of the camera by protecting the cable within the bracket.
Incorporating a number of advanced features for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the IB8354-C is the ideal solution for your outdoor surveillance needs.
Download PDF
▍KEY FEATURES
• 1.3-Megapixel CMOS Sensor
• 30 fps @ 1280x1024
• Real-time H.264, MJPEG Compression (Dual Codec)
• Removable IR-cut Filter for Day & Night Function
• Built-in IR Illuminators, Effective up to 20 Meters
• Built-in 802.3af Compliant PoE
• Build-in MicroSD/SDHC/SDXC card slot for On-board Storage
• Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
• Weather-proof IP66-rated Housing
• Mounting Bracket with Cable Management for Protected Installation
• 3D Noise Reduction
• Supreme Night Visibility
▍SPECIFICATIONS
In order to adapt to constantly changing outdoor lighting conditions, the IB8354-C features a removable IR-cut filter as well as improved IR illuminators effective up to 20M for superior image quality around the clock. The supreme sensitivity of the sensor enables the camera to capture true colors in dark areas. For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing to withstand dust and rain. The IB8354-C further strengthens the robustness of the camera by protecting the cable within the bracket.
Incorporating a number of advanced features for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the IB8354-C is the ideal solution for your outdoor surveillance needs.
Download PDF
▍KEY FEATURES
• 1.3-Megapixel CMOS Sensor
• 30 fps @ 1280x1024
• Real-time H.264, MJPEG Compression (Dual Codec)
• Removable IR-cut Filter for Day & Night Function
• Built-in IR Illuminators, Effective up to 20 Meters
• Built-in 802.3af Compliant PoE
• Build-in MicroSD/SDHC/SDXC card slot for On-board Storage
• Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
• Weather-proof IP66-rated Housing
• Mounting Bracket with Cable Management for Protected Installation
• 3D Noise Reduction
• Supreme Night Visibility
▍SPECIFICATIONS
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image sensor | 1/3" Progressive CMOS |
| Maximum Resolution | 1280x1024 (1.3MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 4 mm |
| Aperture | F1.6 |
| Auto-iris | P-iris |
| Field of View | 69° (horizontal) 54° (vertical) 87° (diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| Day & Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.08 Lux @ F1.6, 30 IRE ( Color ) 0.06 Lux @ F1.6, 30 IRE ( B/W ) 0Lux @ IR LED ON |
| Pan / Tilt / Zoom | ePTZ: 48x digital zoom (4x on IE plug-in,12x built in) |
| IR Illuminators | Built-in IR illuminators, effective up to 20 meters IR LED*12 |
| On-board Storage | SD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | In both compression modes: 30 fps @ 1280x1024 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 56.5 dB |
| Dynamic Range | 69.4 dB |
| Video Streaming | Adjustable resolution, quality and bitrate Configurable video cropping for bandwidth saving |
| Image Settings | Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings 3D Noise Reduction |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server |
| General | |
| Connectors | RJ-45 for Network/PoE connection Digital input*1 |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 5.5 W |
| Dimensions | Ø: 60 mm x 294 mm |
| Weight | Net: 1,161g Bracket: 544g |
| Casing | Weather-proof IP66-rated housing Mounting bracket with cable management |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F~122°F) Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) |
| Warranty | 24 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x, 9.x, 10.x |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
