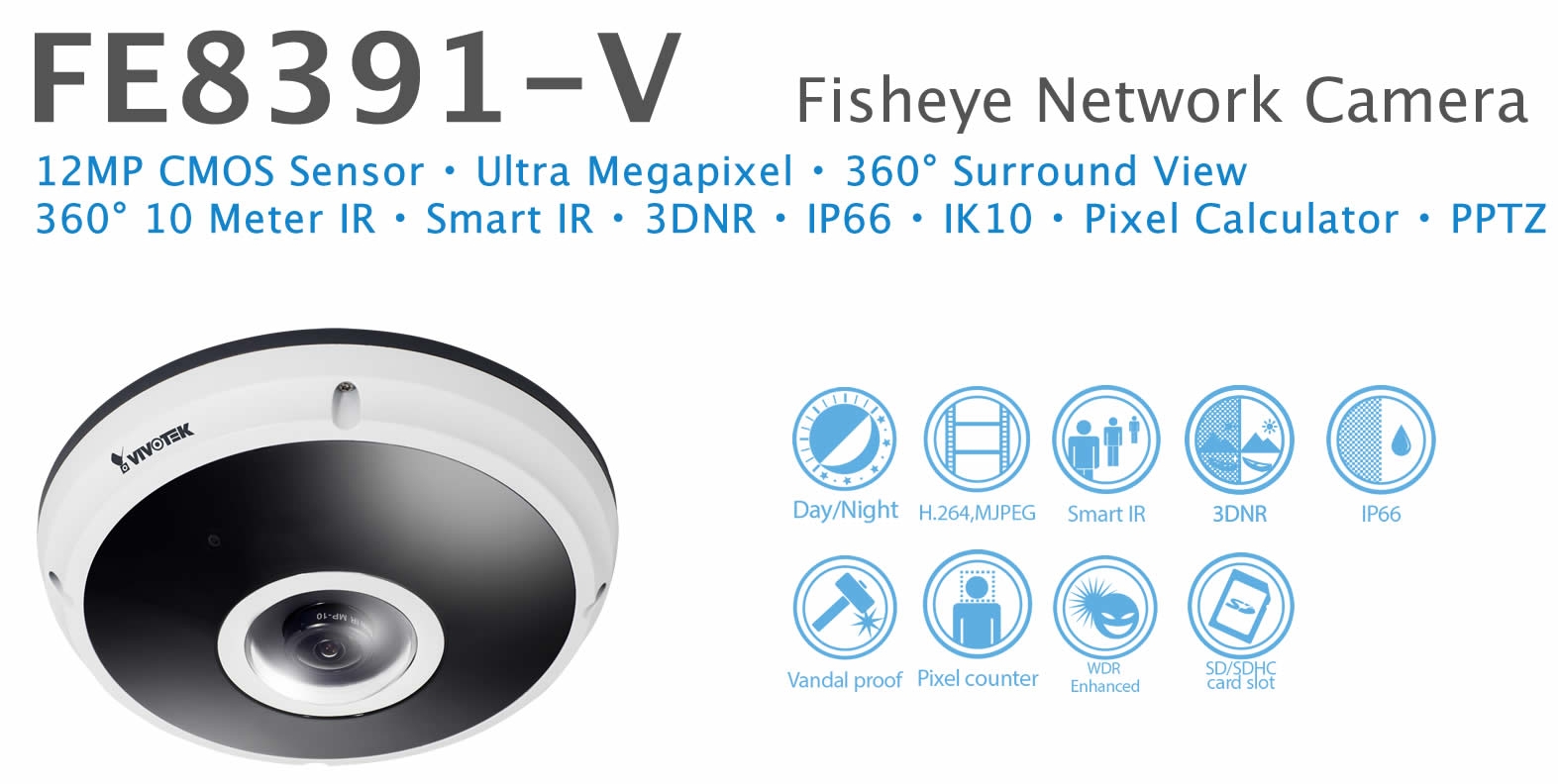

VIVOTEK’s FE8391-V is a market-leading Ultra-Megapixel fisheye fixed dome network cameras, featuring a detailed 12-Megapixel CMOS sensor which guarantees superb image quality. Equipped with a 1.5 mm fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/wall/floor mount) with zero blind spots, the camera is able to provide total coverage of wide, open areas, such as airports, shopping malls, parking lots, retail stores, offices and more.
The FE8391-V is equipped with a removable IR-cut filter and WDR Enhancement technology, which allows the cameras to maintain optimal image quality around the clock and unparalleled visibility under high-contrast lighting environments. 3D Noise Reduction technology enables the cameras to capture clear, polished video under low-light conditions. Plus, it is compatible with VIVOTEK’s Panoramic PTZ solution, allowing users to simultaneously monitor an area overview from a fisheye model while providing a detailed regional view from a speed dome camera.
In addition, the FE8391-V uniquely features built-in IR LEDs, making this camera the world’s first Ultra-Megapixel fisheye network camera with IR illumination. With its patent-protected light cup, the FE8391-V provides highly uniform 360° surround illumination for clear viewing up to 10 meters, even in completely dark environments.
Finally, securing your investment, the FE8391-V is designed with vandal-proof IK10-rated and weather-proof IP66-rated housing which guaranty the camera’s durability even in the harshest environmental conditions or where vandalism is a problem.
Download PDF
▍KEY FEATURES
• 12-Megapixel CMOS Sensor
• 12 fps @ 2944x2944
• 1.5 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
• Removable IR-cut Filter for Day & Night Function
• 360° 10 Meter IR
• Real-time H.264 and MJPEG Compression
• WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
• 3D Noise Reduction for Low-light Conditions
• Panoramic PTZ Function with Speed Dome Camera for monitoring detailed regional view
• ePTZ for Data Efficiency
• Support Local Dewarping
• Pixel Calculator for Image Clarity Measurement
• 802.3at PoE Compliant
• Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
▍SPECIFICATIONS
The FE8391-V is equipped with a removable IR-cut filter and WDR Enhancement technology, which allows the cameras to maintain optimal image quality around the clock and unparalleled visibility under high-contrast lighting environments. 3D Noise Reduction technology enables the cameras to capture clear, polished video under low-light conditions. Plus, it is compatible with VIVOTEK’s Panoramic PTZ solution, allowing users to simultaneously monitor an area overview from a fisheye model while providing a detailed regional view from a speed dome camera.
In addition, the FE8391-V uniquely features built-in IR LEDs, making this camera the world’s first Ultra-Megapixel fisheye network camera with IR illumination. With its patent-protected light cup, the FE8391-V provides highly uniform 360° surround illumination for clear viewing up to 10 meters, even in completely dark environments.
Finally, securing your investment, the FE8391-V is designed with vandal-proof IK10-rated and weather-proof IP66-rated housing which guaranty the camera’s durability even in the harshest environmental conditions or where vandalism is a problem.
Download PDF
▍KEY FEATURES
• 12-Megapixel CMOS Sensor
• 12 fps @ 2944x2944
• 1.5 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
• Removable IR-cut Filter for Day & Night Function
• 360° 10 Meter IR
• Real-time H.264 and MJPEG Compression
• WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
• 3D Noise Reduction for Low-light Conditions
• Panoramic PTZ Function with Speed Dome Camera for monitoring detailed regional view
• ePTZ for Data Efficiency
• Support Local Dewarping
• Pixel Calculator for Image Clarity Measurement
• 802.3at PoE Compliant
• Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
▍SPECIFICATIONS
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB |
| RAM | 1 GB |
| Camera Features | |
| Image sensor | 1/2.3" Progressive CMOS in 4072x3046 |
| Maximum Resolution | 2944x2944 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.5 mm |
| Aperture | F2.8 |
| Field of View | 180° (Horizontal) 180° (Vertical) 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/8,000 sec. |
| WDR Technology | WDR Enhanced |
| Day & Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.75 Lux, 30 IRE (Color) |
| Preset Locations | 20 |
| Pan / Tilt / Zoom | ePTZ 12x digital zoom (12x on IE plug-in) |
| IR Illuminators | Built-in IR illuminators, effective up to 10 meters IR LED*6 |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | In both compression modes: 12fps @ 2944x2944 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 56 dB |
| Dynamic Range | 60 dB |
| Video Streaming | Adjustable resolution, quality and bitrate Configurable video cropping for bandwidth saving |
| Image Settings | Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, pixel calculator, 3D-Noise reduction, 2D-Noise reduction, white balance, exposure control, gain, backlight compensation, privacy masks |
| Audio | |
| Audio Capability | Audio input / output ( full duplex ) |
| Compression | AAC, G.711, G.726 |
| Interface | Built-in microphone External microphone input External line output |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server |
| General | |
| Connectors | RJ-45 for Network/PoE connection Audio input *1 Audio output *1 DC 12V Power input Digital input *1 Digital ouput *1 |
| LED Indicator | System power and status indicator |
| Power Input | 12V DC IEEE 802.3at PoE Class 4 |
| Power Consumption | DC12V 21.7W / POE 23.4W |
| Dimensions | Ø: 160 mm x 51.2 mm |
| Weight | Net: 805 g |
| Safety Certifications | CE, LVD, VCCI, C-Tick, UL, FCC Class A |
| Operating Temperature | Starting Temperature: -25°C ~ 50°C (-13°F ~ 122°F) Working Temperature: -40°C ~ 50°C (-40°F ~ 122°F) |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x, 9.x, 10.x |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
