Malaysia Leading CCTV IP Network Camera Solution Provider

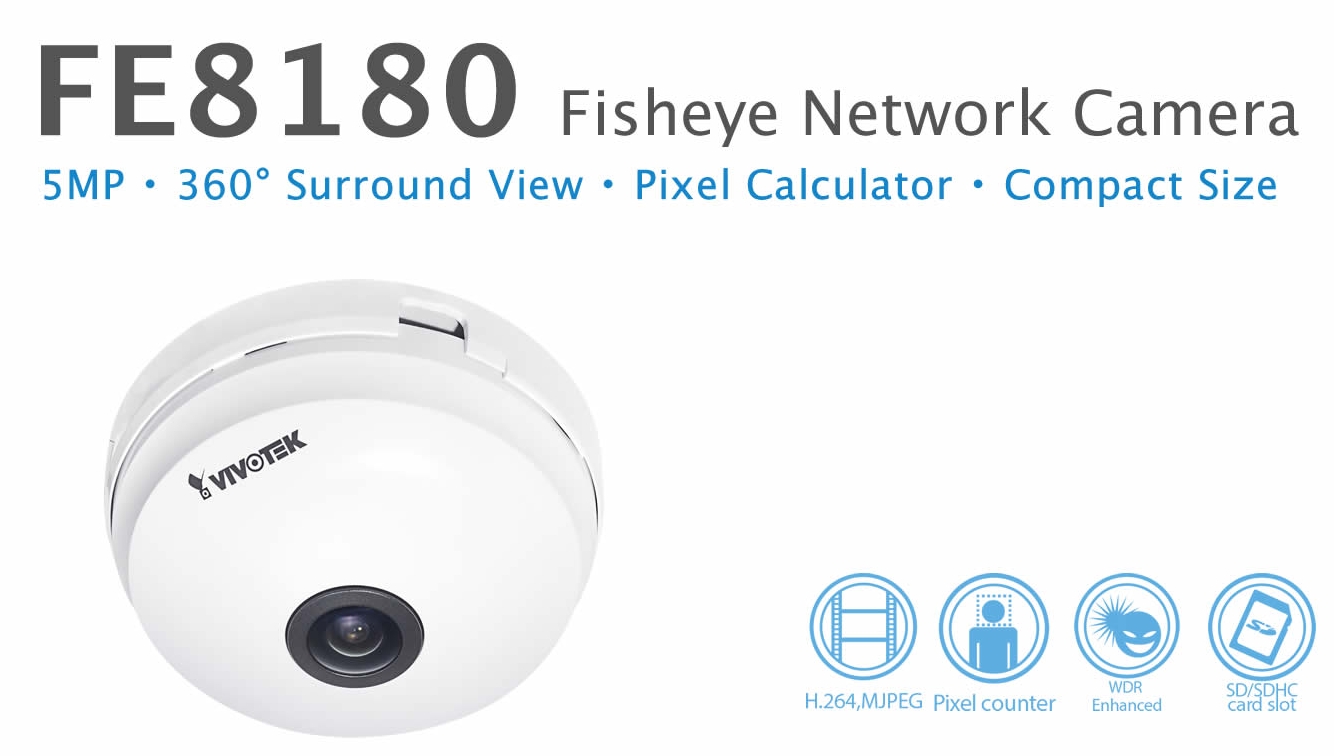

The FE8180 is the world's smallest 5MP fisheye network camera. Ideal for any application which calls for broad coverage but where appearance matters, VIVOTEK's FE8180 blends in with any surrounding, packing the highest-level performance within the lowest-profile camera
The FE8180 can be mounted on any wall and features an ideal 15° tilt mount for 180° panoramic views. With this mounting option, the FE8180 captures high definition, wall-to-wall coverage at the perfect angle for facial recognition.
When mounted on the ceiling, the FE8180 provides an expansive 360° surround view, meaning that this tiny camera can deliver an even wider range of coverage - showing you the world, but remaining discrete.
Download PDF
▍KEY FEATURES
• 5-Megapixel CMOS Sensor
• 30fps @ 1080p Full HD
• 1.57 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
• WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
• ePTZ for Data Efficiency
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• Support Local or Client Side Dewarping
• 3D Noise Reduction
• 15° Tilt Mount Available
• Support Installation with Conduit Box
▍SPECIFICATIONS
The FE8180 can be mounted on any wall and features an ideal 15° tilt mount for 180° panoramic views. With this mounting option, the FE8180 captures high definition, wall-to-wall coverage at the perfect angle for facial recognition.
When mounted on the ceiling, the FE8180 provides an expansive 360° surround view, meaning that this tiny camera can deliver an even wider range of coverage - showing you the world, but remaining discrete.
Download PDF
▍KEY FEATURES
• 5-Megapixel CMOS Sensor
• 30fps @ 1080p Full HD
• 1.57 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
• WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
• ePTZ for Data Efficiency
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• Support Local or Client Side Dewarping
• 3D Noise Reduction
• 15° Tilt Mount Available
• Support Installation with Conduit Box
▍SPECIFICATIONS
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image sensor | 1/2.5" progressive CMOS |
| Maximum Resolution | 1920x1920 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.57 mm |
| Aperture | F2.2 |
| Field of View | 180° (Horizontal) 180° (Vertical) 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Minimum Illumination | 0.18 Lux @ F2.2 (Color) |
| Pan / Tilt / Zoom | ePTZ 12x digital zoom (12x on IE plug-in) |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | In both compression modes: 15 fps @ 1920x1920 30 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | Above 62 dB |
| Dynamic Range | 57 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Image Settings | Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, 3D noise reduction Pixel calculator |
| Audio | |
| Audio Capability | - |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X. |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server |
| General | |
| Connectors | RJ-45 for Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 1 |
| Power Consumption | PoE Max. 3.6 W |
| Dimensions | Ø: 90 mm x 37 mm |
| Weight | Net: 135 g |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick |
| Operating Temperature | Starting Temperature: 0°C ~ 40°C (32°F ~ 104°F) Working Temperature: -10°C ~ 40°C (14°F ~ 104°F) |
| Warranty | 24 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x, 9.x, 10.x |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
