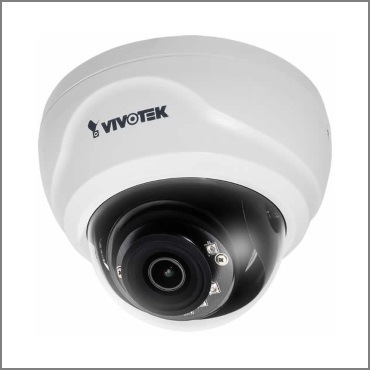

Vivotek FD8169 2MP Dome IP Camera
Key features
• 2-Megapixel CMOS Sensor
• 30 fps @ 1920x1080
• Real-time H.264, MJPEG Compression (Dual Codec)
• Removable IR-cut Filter for Day & Night Function
• Built-in IR Illuminators, Effective up to 15 Meters
• Built-in 802.3af Compliant PoE
• Build-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
• 3D Noise Reduction
• Smart IR Technology to Avoid Overexposure
• WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
Key features
• 2-Megapixel CMOS Sensor
• 30 fps @ 1920x1080
• Real-time H.264, MJPEG Compression (Dual Codec)
• Removable IR-cut Filter for Day & Night Function
• Built-in IR Illuminators, Effective up to 15 Meters
• Built-in 802.3af Compliant PoE
• Build-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
• Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
• 3D Noise Reduction
• Smart IR Technology to Avoid Overexposure
• WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
| Datasheet | Download PDF |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Image sensor | 1/2.7" Progressive CMOS |
| Maximum Resolution | 1920x1080 (2MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F 2.0 |
| Field of View | 105° (Horizontal) 87° (Vertical) 135° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day & Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 1.22 Lux @ F2.0 (Color) 0.008 Lux @ F2.0 (B/W) 0 Lux @ IR LED ON |
| Pan range | 348° |
| Tilt range | 70° |
| Rotation Range | 345° |
| Pan / Tilt / Zoom | ePTZ - 48x digital zoom (4x on IE plug-in, 12x built-in) |
| IR Illuminators | Built-in IR illuminators, effective up to 15 meters with Smart IR IR LED*6 |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video Compression | H.264 & MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 in both compression |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | Above 53 dB |
| Dynamic Range | 54.5 dB |
| Video Streaming | Adjustable resolution, quality and bit rate Configurable video cropping for bandwidth saving |
| Image Settings | Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, 3D Noise Reduction |
| Network Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video Video Motion Detection | Triple-window video motion detection |
| Alarm and Event Alarm Triggers | Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server |
| General Connectors | RJ-45 for Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power input | DC12V IEEE 802.3af PoE Class 3 |
| Power consumption | Max: 6.5 W (DC12V) Max: 7.5 W (PoE) |
| Dimensions | F: 128 mm x 98 mm |
| Weight | Net: 435 g |
| Safety Certifications | CE C-Tick FCC ( Class B ) LVD VCCI |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F~122°F) Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) |
| Warranty | 24 Months |
