Malaysia Leading CCTV IP Network Camera Solution Provider

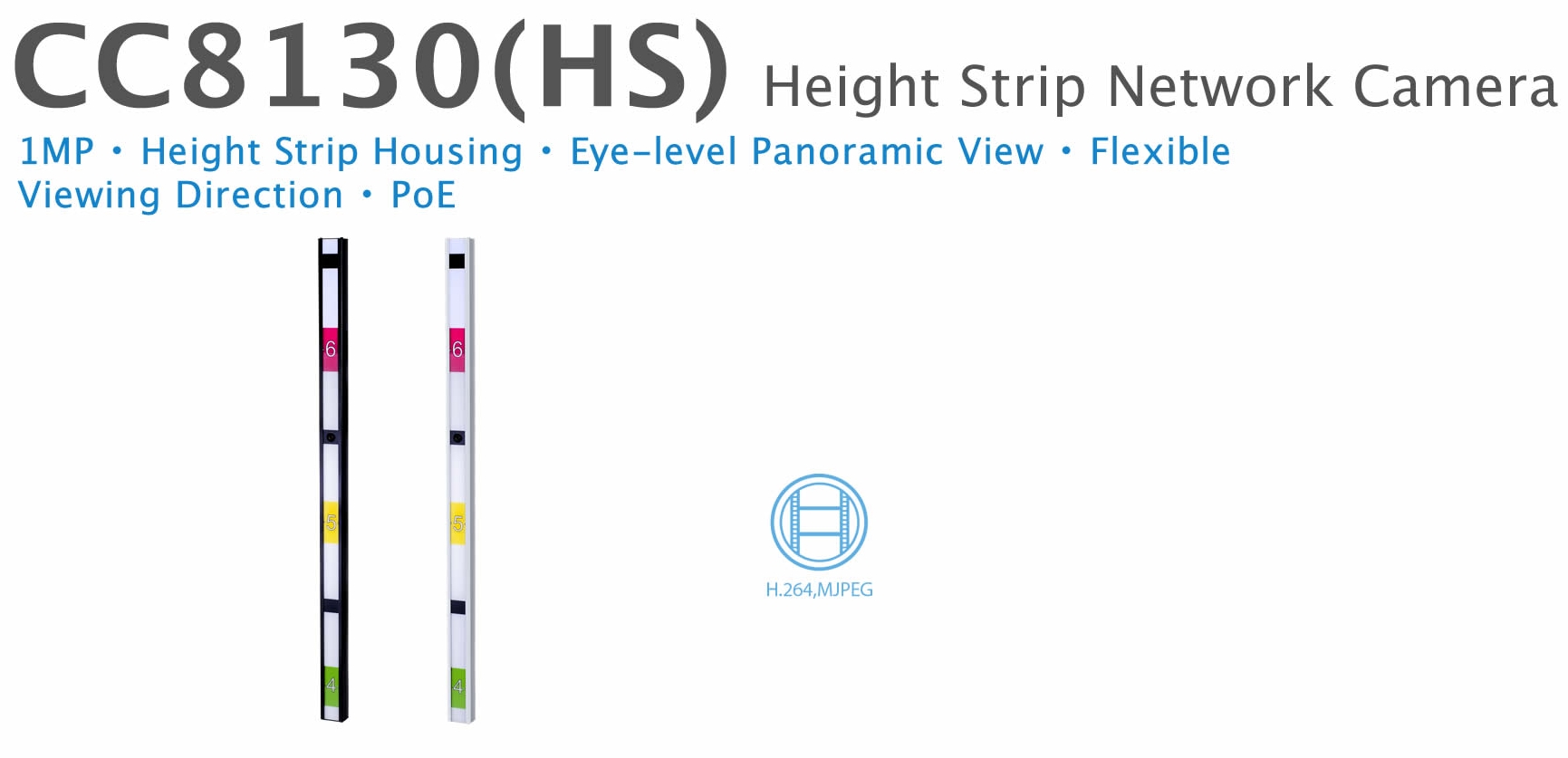

The VIVOTEK CC8130(HS) is a height-strip network camera equipped with a 180 degree wide-angle lens, delivering clear images for reliable facial recognition. An ideal installation height of 170cm (5.5 ft) allows the CC8130(HS) to capture clear facial images at eye view, even when the subject is wearing a hat or hood. In addition, the plug and play design makes the CC8130(HS) installation simple and rapid. Combining low-profile and high- level features, the CC8130(HS) is ideal for discreet indoor applications, such as retail, banks, restaurants, small businesses and particularly in cashier areas.
To dramatically reduce file sizes and conserve valuable network bandwidth, the CC8130(HS) supports the industry-standard H.264 compression technology. Combined with the ST7501 multi-lingual 32-channel recording software, users can quickly and easily set up an IP surveillance system that's simple to operate but hard to beat.
Download PDF
▍KEY FEATURES
• 1-Megapixel CMOS Sensor
• 30 fps @ 1280x800
• 180° Horizontal Panoramic View
• Height Strip Design for Eye-level Video Surveillance
• Real-time H.264 and MJPEG Compression (Dual Codec) • Built-in IEEE 802.3af Compliant PoE
• Easy Installation
▍SPECIFICATIONS
To dramatically reduce file sizes and conserve valuable network bandwidth, the CC8130(HS) supports the industry-standard H.264 compression technology. Combined with the ST7501 multi-lingual 32-channel recording software, users can quickly and easily set up an IP surveillance system that's simple to operate but hard to beat.
Download PDF
▍KEY FEATURES
• 1-Megapixel CMOS Sensor
• 30 fps @ 1280x800
• 180° Horizontal Panoramic View
• Height Strip Design for Eye-level Video Surveillance
• Real-time H.264 and MJPEG Compression (Dual Codec) • Built-in IEEE 802.3af Compliant PoE
• Easy Installation
▍SPECIFICATIONS
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 128 MB |
| Camera Features | |
| Image sensor | 1/4" progressive CMOS |
| Maximum Resolution | 1280x800 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.3 mm |
| Aperture | F1.8 |
| Field of View | 180° (Horizontal) 100° (Vertical) 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| Minimum Illumination | 0.4 Lux @ F1.8 (Color) |
| Pan / Tilt / Zoom | ePTZ 4x digital zoom IE plug-in |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | In both compression modes: 30 fps @ 1280x800 |
| Maximum Streams | 2 simultaneous streams |
| S/N Ratio | Above 56 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Image Settings | Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, periodical trigger, system boot, recording notify |
| Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server |
| General | |
| Connectors | RJ-45 for Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 1 |
| Power Consumption | Max. 3.8W |
| Dimensions | 27.66 mm (D) x 49.3 mm (W) x 866.4 mm (H) |
| Weight | Net: 94 g |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Warranty | 24 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x, 9.x, 10.x |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
