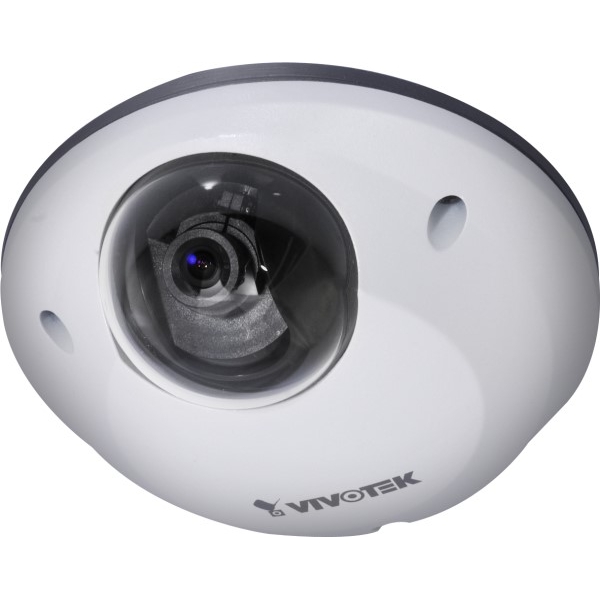

Products » Vivotek » FD7130
| Download: | ||
| FD7130 Specs. Sheet | [ Download ] | |
| FD7130 Quick Guide | [ Download ] | |
| FD7130 User's Manual | [ Download ] |
| Specification: | |||
| System | - CPU: Mozart 120 SoC - Flash: 16MB - RAM: 128MB + 128MB - Embedded OS: Linux 2.6 |
||
| Camera Specification | - 1/4" CMOS sensor - Resolution: 640(H)x480(V) |
||
| Image Resolution | - MPEG-4 (640x480), MJPEG (640x480) | ||
| Frame Rate | - 640x480:30FPS | ||
| Camera Setting | - AGC/AWB/AES | ||
| Electronic Shutter | 1/5 to 1/15,000 sec. | ||
| Lens | - 2.8mm, F2.0 | ||
| Minimum Illumination | - 0.5Lux/F2.0 | ||
| Audio | N/A | ||
| Networking | - Ethernet (10Base-T/100Base-TX) | ||
| Dimension | - Depth: 34.8mm - Width: 109.5mm - Height: 77.2mm |
||
| Weight | - 150 g | ||
| Power | - PoE |
|
|
Features
* 1/4" CMOS Sensor in VGA resolution
* Wide Angle Fixed Lens
* Real-time MPEG-4 and MJPEG Compression (Dual Codec)
* Supports Dual Streams Simultaneously
* Tamper Detection for Unauthorized Changes
* Temperature Alarm Trigger
* IP66-rated, Tamper- and Vandal-proof Housing
* Built-in 802.3af Compliant PoE
* HTTPS Encrypted Data Transmission
* 802.1X Port-based Authentication for Network Protection
* MicroSD/SDHC Card Slot for On-board Storage
* Includes Free Standard 32-CH ST7501 Central Management Software
* 1/4" CMOS Sensor in VGA resolution
* Wide Angle Fixed Lens
* Real-time MPEG-4 and MJPEG Compression (Dual Codec)
* Supports Dual Streams Simultaneously
* Tamper Detection for Unauthorized Changes
* Temperature Alarm Trigger
* IP66-rated, Tamper- and Vandal-proof Housing
* Built-in 802.3af Compliant PoE
* HTTPS Encrypted Data Transmission
* 802.1X Port-based Authentication for Network Protection
* MicroSD/SDHC Card Slot for On-board Storage
* Includes Free Standard 32-CH ST7501 Central Management Software
